Cast Resin Dry-Type Transformers for UAE Projects

We help UAE buyers connect with qualified Chinese manufacturing resources, coordinate technical requirements and source reliable cast resin dry-type transformers at competitive project pricing.

Need a different voltage, capacity or configuration? Send us the project specification for technical confirmation.

Request Technical Quote View Technical Range

50–2500 kVA50 HzCast Resin Dry-TypeProject-Specific Engineering

SC(B) Series Dry-Type Transformer

Cast Resin Dry-Type Transformer

Specification FirstQuotation based on actual project requirements.

MEP & Contractor SupportTechnical coordination for project procurement and engineering review.

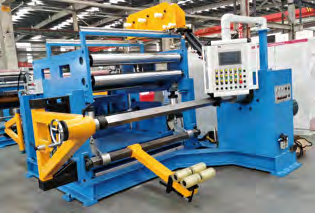

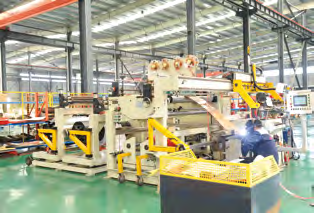

Manufacturing CapabilityDry-type transformer production, testing and project-specific configuration.

UAE Project SupportSpecification review and quotation support for UAE project requirements.

Why ZAINVOLT

Your China–UAE Transformer Sourcing & Coordination Partner

One coordination point between UAE project requirements and Chinese manufacturing resources—from specification matching and supplier communication to quotation follow-up and supply coordination.

China–UAE Coordination Clear communication between UAE project requirements and Chinese manufacturing teams.

Supplier & Specification Matching We help align voltage, capacity, configuration and documentation with the actual project requirement.

Competitive Project Pricing Access to China-based manufacturing resources with a focus on practical, cost-effective project supply.

Problem-Solving Support Support with technical clarification, documentation coordination, quotation follow-up and supply communication.

Technical Range

Key Technical Range for Project Review

Review the core manufacturing range, then send the actual project specification for technical confirmation and quotation.

SC(B) Series Dry-Type Transformer

Cast Resin Dry-Type Transformer

Cast Resin Dry-Type Transformer Range

Final configuration depends on the consultant specification, project requirements and required approval documentation.

Rated capacity50–2500 kVA

Voltage configurationProject-specific / technical confirmation

Typical LV0.4 kV

Vector groupDyn11 / project-specific

Frequency50 Hz

Insulation thermal classF / H options, subject to design

Manufacturing capability includes 10 kV, 20 kV and 35 kV-class dry-type transformers. Other voltage requirements can be reviewed against the consultant or project specification. Final design, documentation and quotation are subject to technical confirmation and local project requirements.

Manufacturing Partner & Qualifications

Factory Credentials & Dry-Type Test Reports

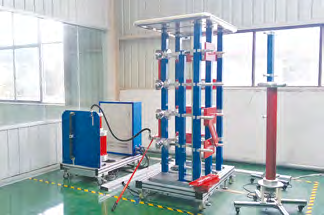

Manufacturing partner: Jiangsu Xiongfeng Electrical Equipment Co., Ltd., supporting transformer production, testing and project-specific configuration for ZAINVOLT supply projects.

Management Systems Factory-level management-system certificates.

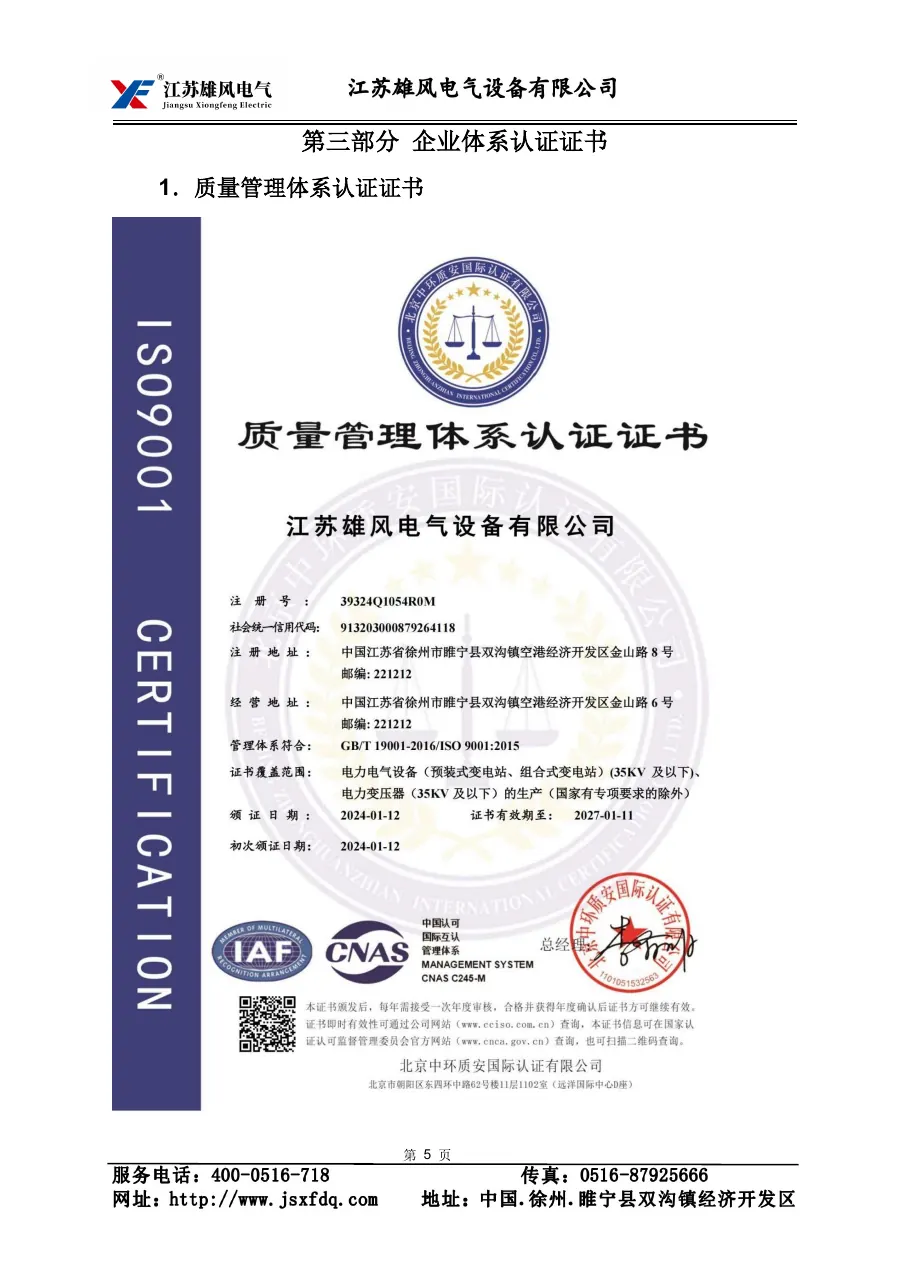

ISO 9001Quality Management System

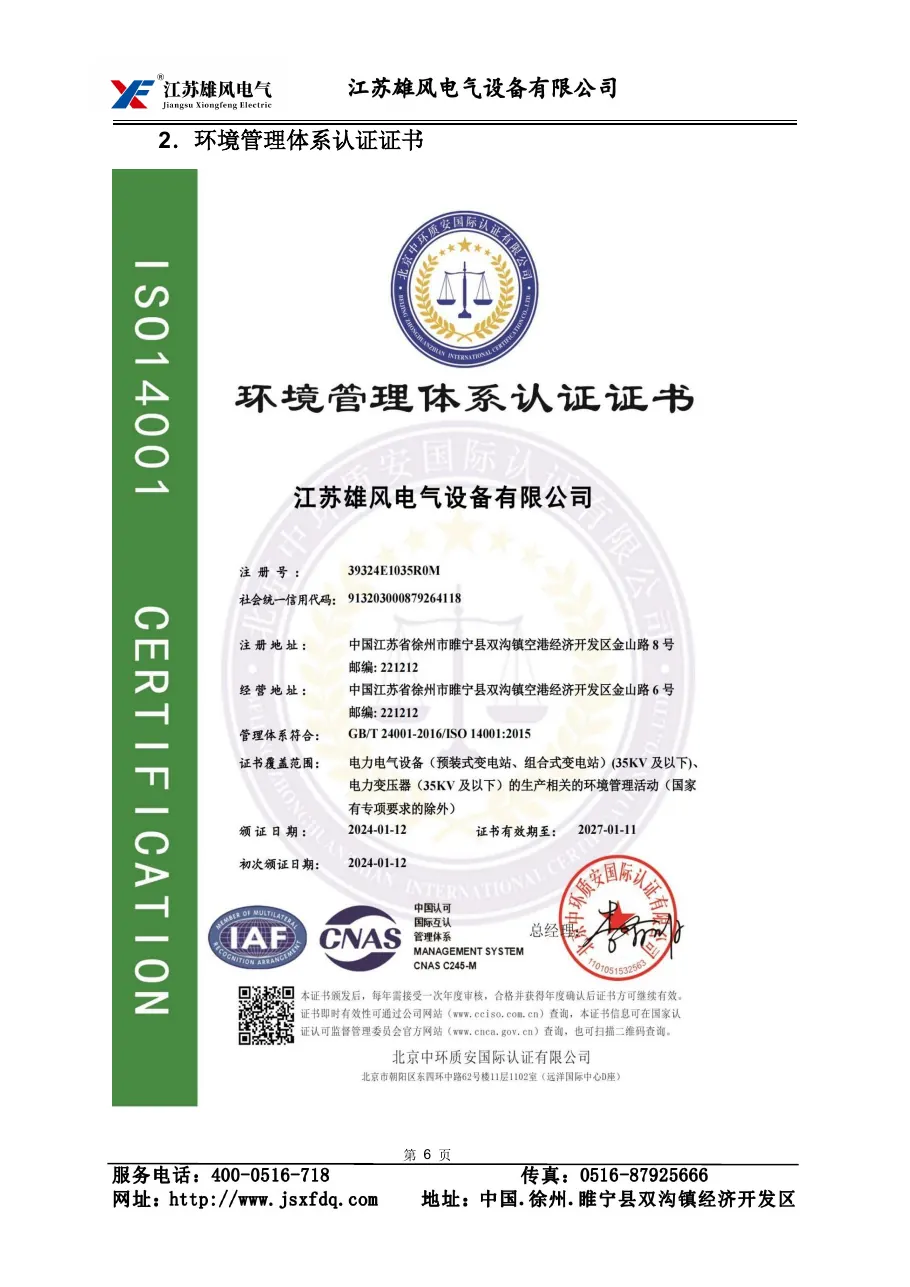

ISO 14001Environmental Management System

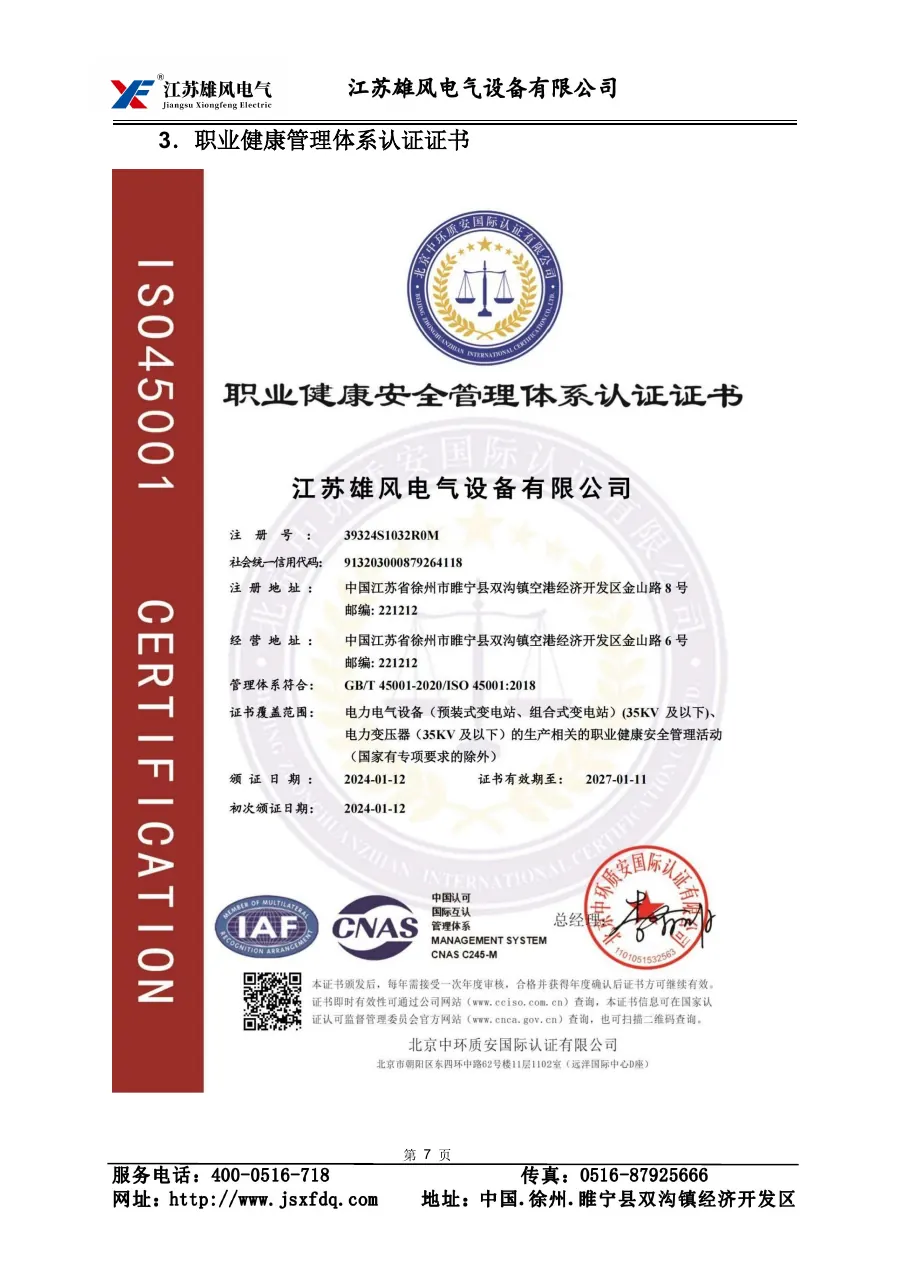

ISO 45001Occupational Health & Safety

Dry-Type Transformer Test Reports Representative SCB-series type test reports from the manufacturing partner.

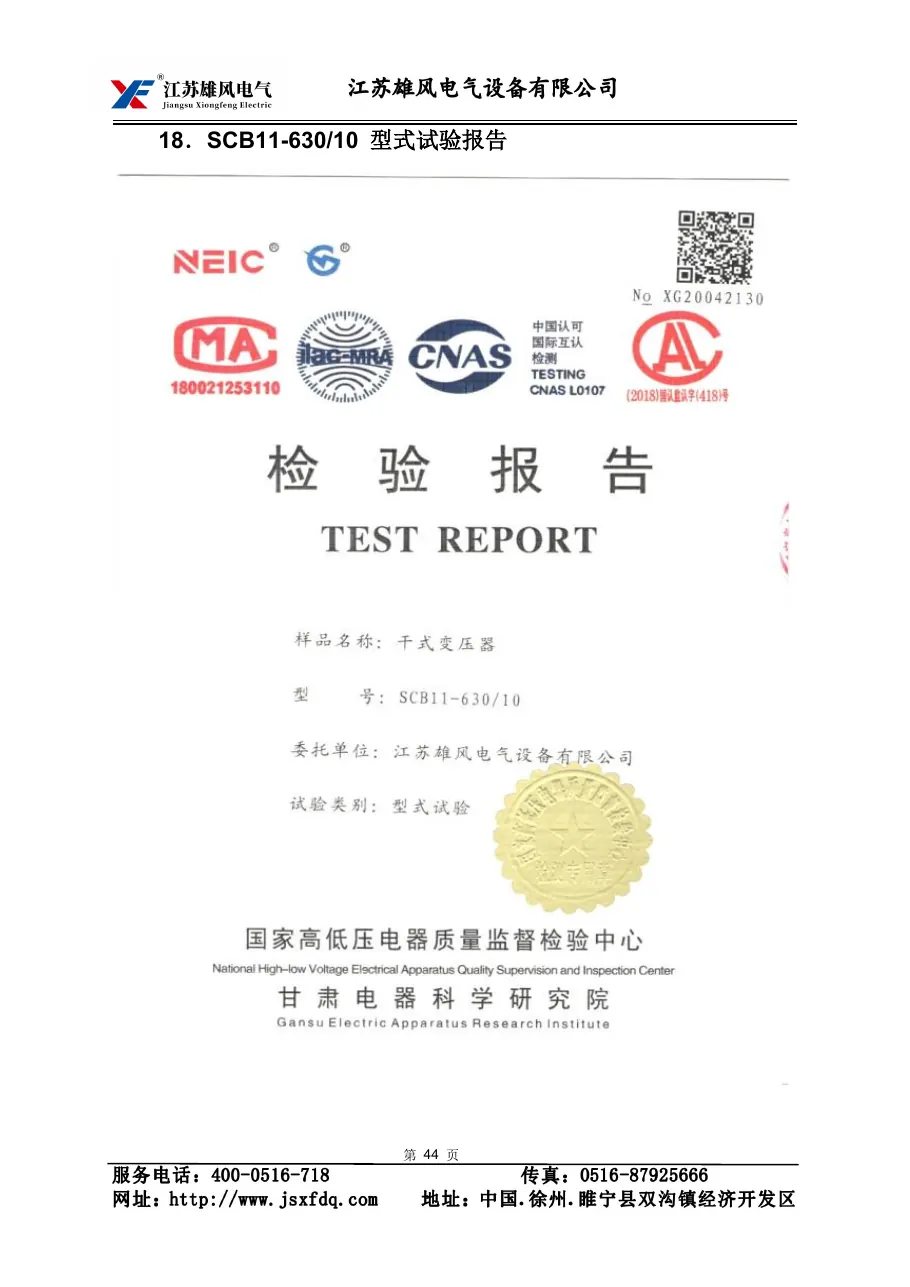

SCB11-630/10Type Test Report

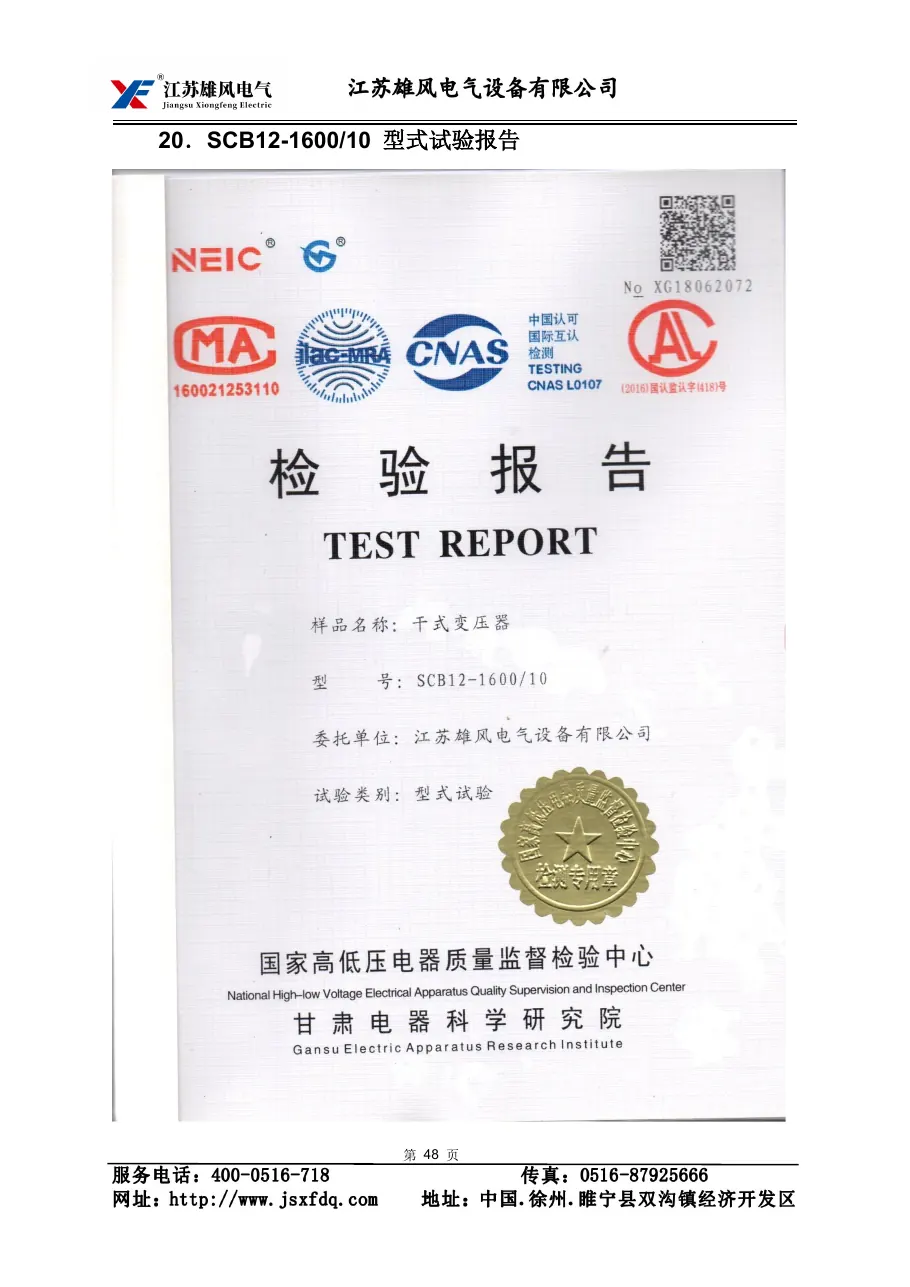

SCB12-1600/10Type Test Report

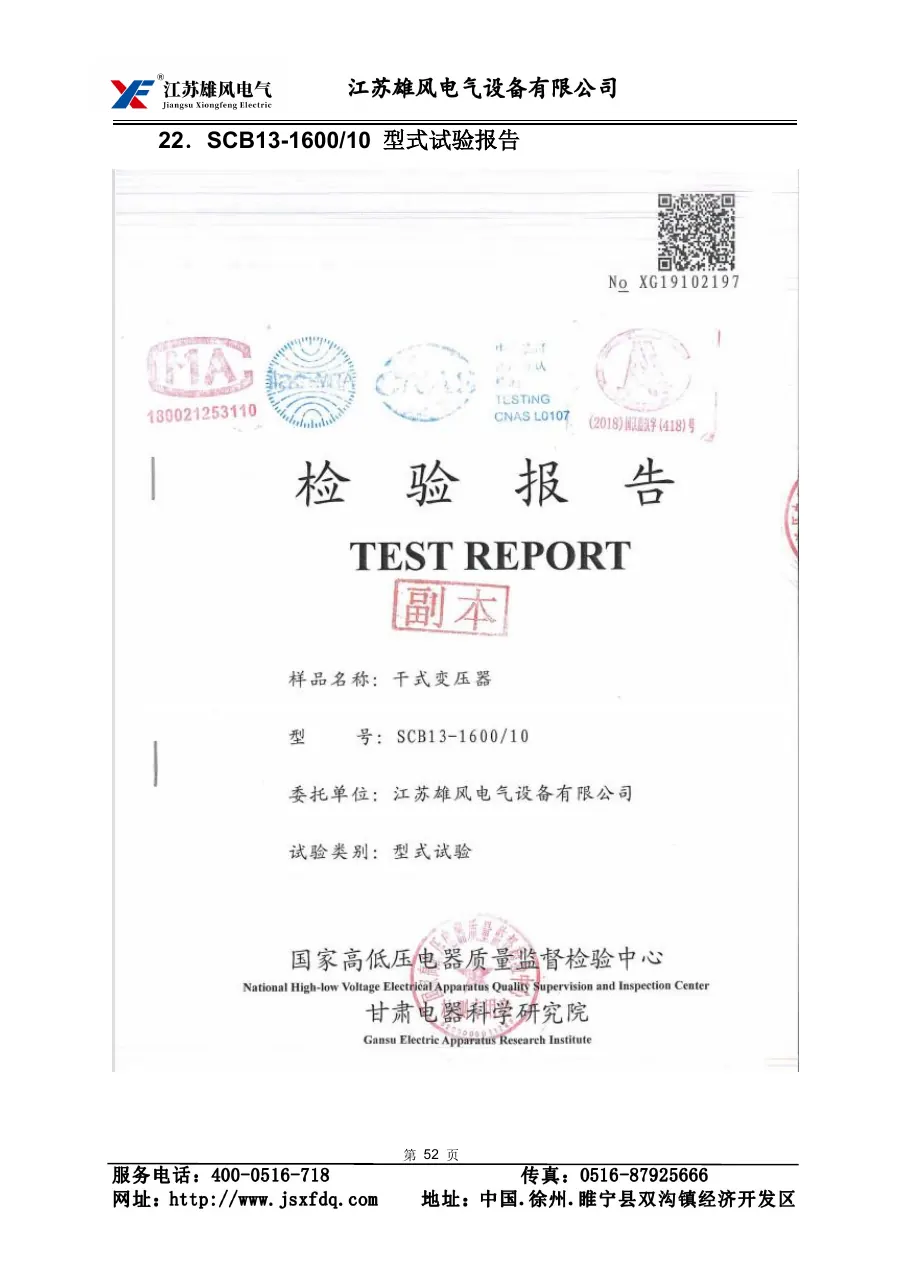

SCB13-1600/10Type Test Report

Documents shown relate to the manufacturing partner and the specific certified or tested models. They do not constitute DEWA, TAQA or other UAE local-authority approval for every transformer configuration. Project-specific certification, testing and approval requirements must be confirmed separately.

Applications

Dry-Type Transformers for Real Project Applications

Typical applications include indoor distribution systems where project specifications require dry-type transformer solutions.

MEP ProjectsElectrical distribution packages, contractor coordination and project procurement.

Commercial BuildingsHotels, hospitals, offices, retail buildings and high-rise applications.

Industrial FacilitiesFactories and indoor power-distribution environments.

Indoor SubstationsProject-specific dry-type transformer applications and specification matching.

Capacity Options

Common Dry-Type Transformer Capacities

Select a capacity as a starting point, then confirm the final rating against the project load and consultant specification.

500 kVA Dry-Type Transformer 630 kVA Dry-Type Transformer 1000 kVA Dry-Type Transformer 1600 kVA Dry-Type Transformer 2500 kVA Dry-Type Transformer Cast Resin Dry-Type Transformer UAE

Technical Documentation

Project Review Before Final Quotation

Transformer selection should follow the actual consultant specification, electrical design and local authority requirements.

Specification ReviewReview capacity, HV/LV voltage, vector group, impedance and application requirements before final selection.

Technical DatasheetsTechnical datasheets can be prepared according to the confirmed transformer configuration.

Factory Test DocumentationTesting and related documentation are confirmed according to the final project specification and agreed supply scope.

Approval RequirementsLocal authority, consultant and project approval requirements should be confirmed before order placement.

Send Your Specification for Technical Review & Quotation

For an accurate quotation, start with the actual project parameters and consultant requirements.

1. CapacityExample: 1000 kVA

2. HV / LV voltageEnter the required project HV / LV voltage

3. QuantityNumber of units required

4. Project locationDubai, Abu Dhabi or another emirate

5. Consultant / Project SpecificationDescribe the key requirements or send the specification by WhatsApp / email
